Limitations of X-ray Fluorescence Spectrometer for Gold Detection

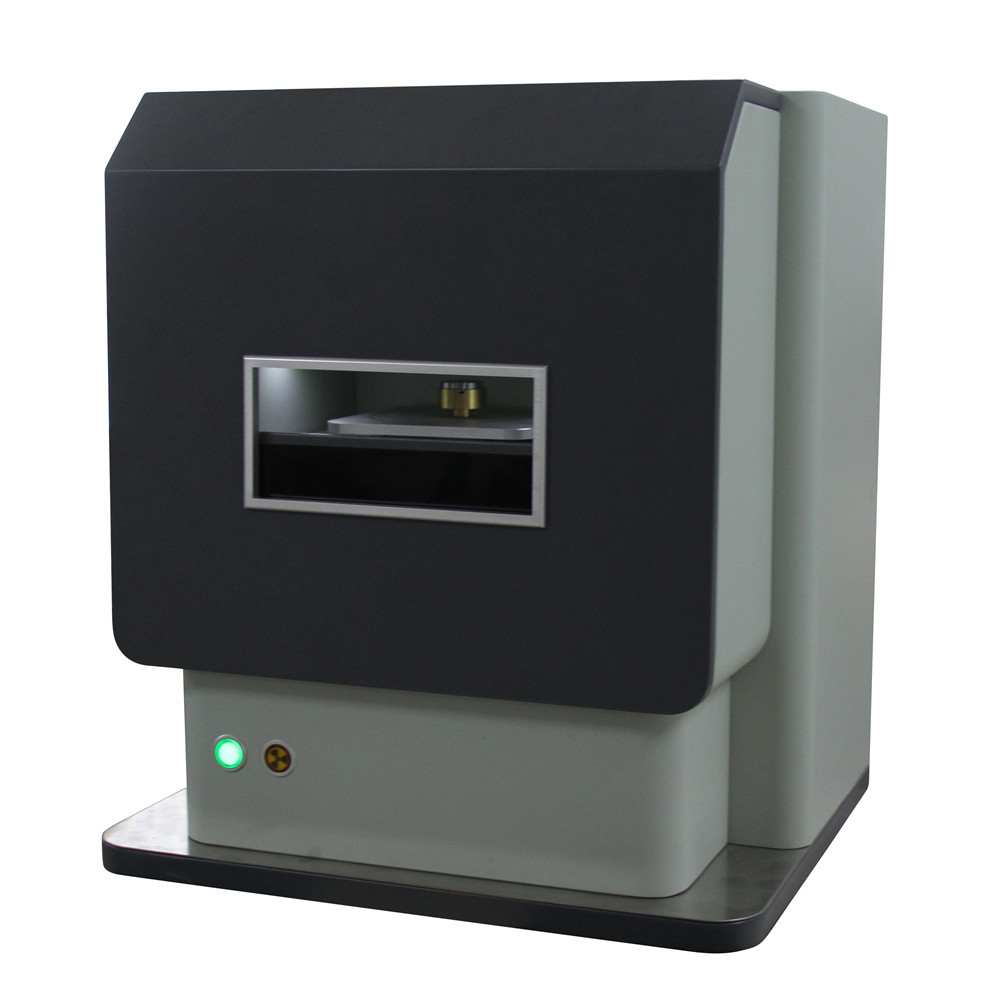

I. Excitation Principle of X-ray Fluorescence Spectrometer:

High-energy X-rays irradiate the sample, knocking out inner-shell electrons from atoms. Outer-shell electrons then jump down to fill the void, releasing characteristic X-rays (fluorescence). The instrument captures the energy/wavelength of this fluorescence to identify the element; measuring the intensity allows for the calculation of the concentration.

II. Limitations of XRF Spectrometer for Gold Detection

While X-ray fluorescence analyzer is rapid, non-destructive, and usable in-situ for gold detection, it has clear limitations, especially in scenarios involving high-purity gold, internal doping, complex alloys, or trace amounts of gold, where errors/risks are significant.

1. Surface only, internal structure not visible

Penetration depth:

- Only 1–50 μm (micrometers), only scanning the surface layer.

Completely undetectable internal structure:

- Gold-plated tungsten, gold-plated iridium, gold-plated silver (density close to Au)

- Internal inclusions, uneven solder joint composition

- Gold plating/filling: only the surface layer is read, the substrate cannot be detected.

Conclusion:

- XRF can only determine surface purity, not overall homogeneity.

2. Insufficient Precision in High-Purity Gold

Precision:

- Conventional X-ray metal analyzer: ±0.1%～±0.5% error (1%～5%)

- Fire assay: ±0.01% (0.1%), more than 10 times difference

Reasons:

- Au signal is too strong, masking trace impurity peaks

- Matrix effect (absorption/enhancement) correction is difficult

- Application: Only suitable for initial screening, not for settlement/arbitration basis

3. Elemental Peak Interference (Alloy Misjudgment)

Common Associated/Adulterated Elements in Gold:

- Tungsten (W), Iridium (Ir), Platinum (Pt): X-ray energy close to Au, severe peak overlap

- Silver (Ag), Copper (Cu), Zinc (Zn): K line interferes with Au L line

Conclusion:

- When tungsten/iridium is added, XRF is often misread as high-purity gold

- Lower karat gold (14K/18K) has even greater error

4. Inaccurate Detection of Trace/Low-Content Gold

Detection Limit:

- Desktop XRF: Au ~0.001%～0.1%

- Handheld: Au ~0.1%～1%

Conclusion:

- Inaccurate for mineral samples, waste liquids, and low-grade gold

- Only suitable for high-content gold (jewelry, gold bars), not suitable for trace analysis

III: The preferred Instrument for Detecting Low-content Gold - Inductively Coupled Plasma Spectrometer/Atomic Absorption Spectrometer

1. AAS for Gold

Advantages:

- Inexpensive and easy to maintain, much cheaper than ICP

- Highly accurate for trace gold, detection limits down to PPB level

- Mature method, universally accepted by national standards, high report acceptance

- Good selectivity for gold, low interference

- Low operating cost, saving on gas and consumables

Disadvantages:

- Only measuring one element at a time; Au, Ag, and Cu must be measured separately

- High-concentration gold must be diluted, cumbersome and prone to introducing errors

- Narrow linear range, inaccurate at high concentrations

- Slow speed, long pretreatment and setup time

- Cannot output multi-element results simultaneously

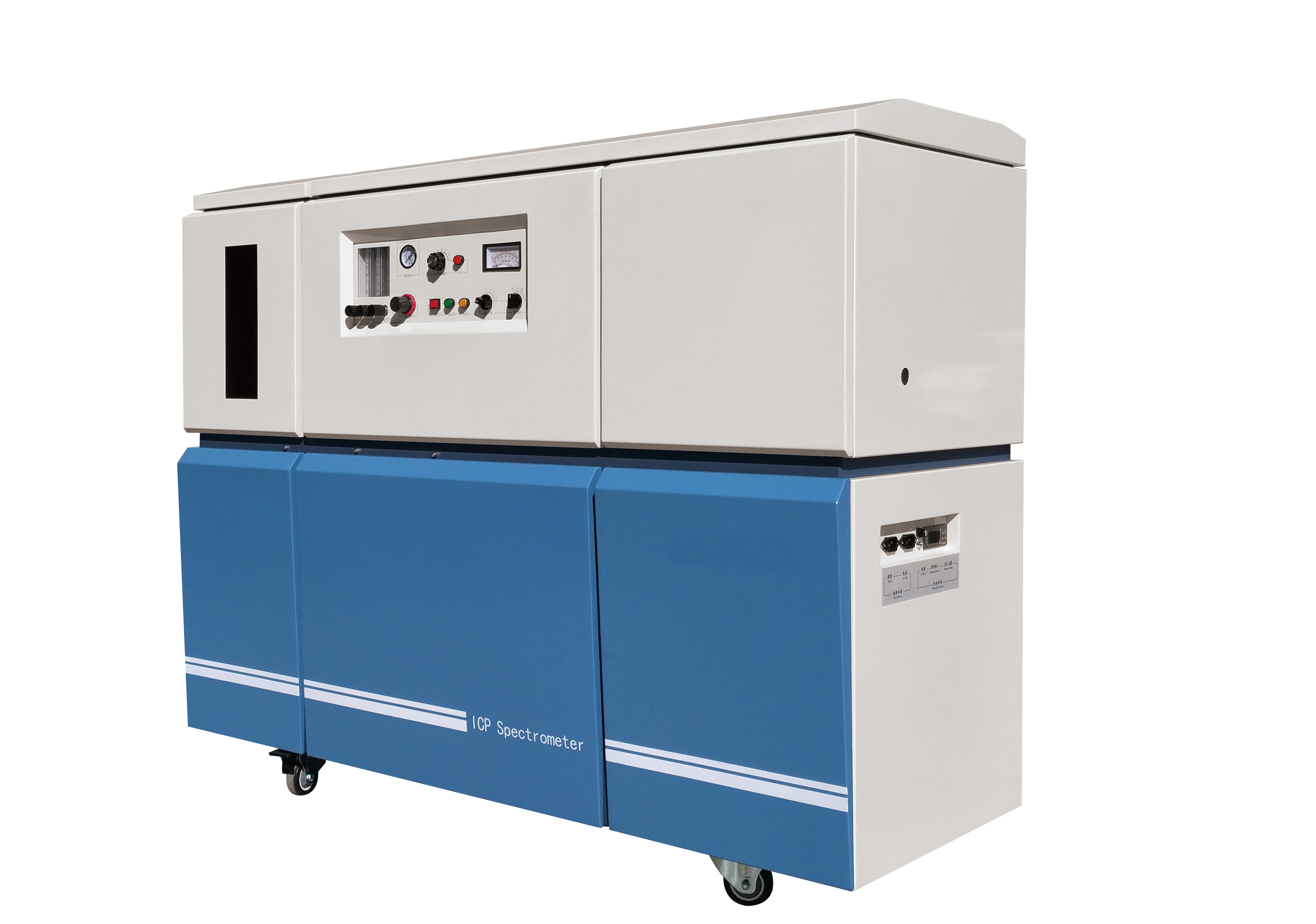

2. ICP Spectrometer for Gold Determination

Advantages:

- Simultaneous multi-element detection:Gold, silver, copper, lead, zinc, etc., all detected in one pass.

- Extremely wide linear range, capable of measuring trace concentrations to high concentrations.

- Fast speed, suitable for batch samples.

- High accuracy and stability, suitable for mining, smelting, and third-party testing.

Disadvantages:

- Expensive instrument, 2-5 times more expensive than AAS.

- High operating costs: High gas consumption, complex maintenance.

- High requirements for pretreatment: significant interference with complex matrices.

- Delicate equipment: high requirements for environment, gas, and water quality.

• Inaccurate for high-purity gold (999/9999) compared to fire assay.
